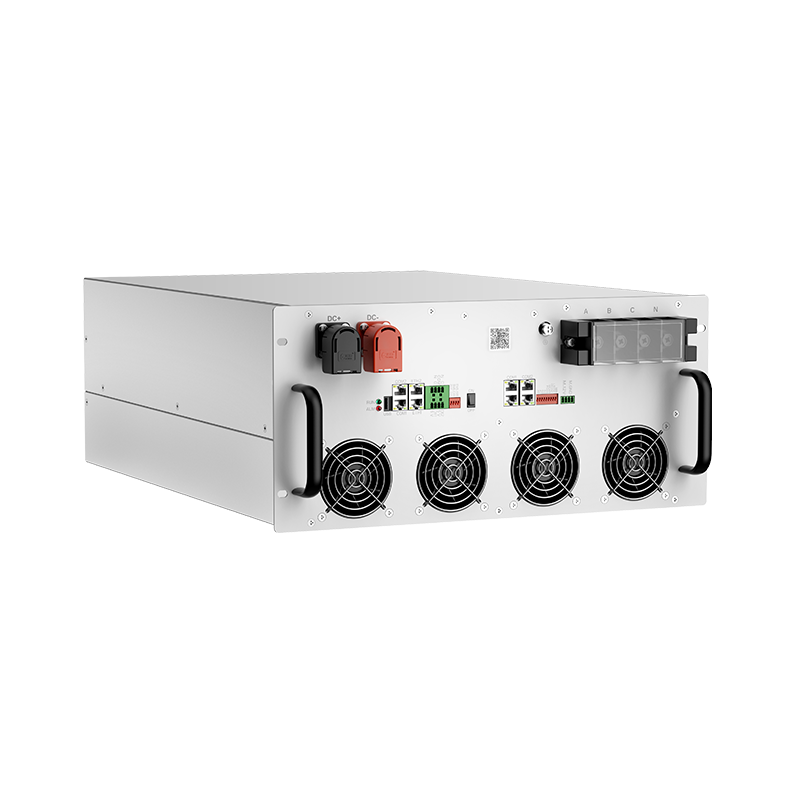

PMA series energy storage converter adopts modular design, it supports power module independent operation and parallel operation, it has flexible system configuration, easy to use, suitable for on-grid small-scale industrial and commercial.
Cambio de carga máxima
Gestión de la demanda
Fuente de alimentación de emergencia
Expansión dinámica
| modelo | PMA080 | PMA0105 | PMA0125 |
| DC(batería) | |||
| Max. Potencia de corriente continua (kW) | 96 | 126 | 150 |
| Rango de tensión de corriente continua (V) | 615~950Vdc(3W+PE)/650~950Vdc(3W+N+PE) | ||
| Rango de tensión (V) de corriente continua | 650~950Vdc(3W+PE)/680~950Vdc(3W+N+PE) | ||
| Max. Corriente continua (A) | ±150 | ±195 | ±230 |
| Precisión en la estabilización de tensión | ±1% | ||
| Precisión de la estabilización de corriente | ±2% | ||
| Ca (en la red) | |||
| Potencia nominal de corriente alterna (kW) | 80 | 105 | 125 |
| Max. AC power (kWA) | 96 | 126 | 150 |
| Escala de tensión | 3W+PE or 3W+N+PE | ||
| Tensión nominal (V) | 400 | ||
| Corriente alterna nominal (A) | 115 | 150 | 180 |
| Max. Corriente alterna (A) | 138 | 180 | 216 |
| THDi | ＜2% | ||
| Rango de tensión admisible de red (V) | 400Vac±15% | ||
| Banda de frecuencia admisible de red (Hz) | 50±2Hz/60±2Hz | ||
| Rango de ajuste del factor de potencia | -1~+1 | ||
| Ca (fuera de la red) | |||
| Potencia nominal de corriente alterna (kW) | 80 | 105 | 125 |
| Max. Corriente de salida (A) | 138 | 180 | 216 |
| Max. AC power (kWA) | 96 | 126 | 150 |
| Tensión nominal (V) | 230/400 | ||
| Frecuencia nominal (Hz) | 50Hz/60Hz | ||
| Precisión de tensión | ±1% | ||
| Precisión de la frecuencia | (50Hz/60Hz − 0,1%)Hz | ||
| THDV | 3% (carga lineal) | ||
| Capacidad de carga desequilibr | Soporta 100% de desequilibrio monofásico | ||
| Capacidad de carga | − 110%,continuo; − 120%,2min;>120%,200ms | ||
| sistema | |||
| Max. eficiencia | 98.7% | ||
| Tiempo de conmutación carga/descarga (ms) | ＜20 | ||
| Protección contra la Ingress | IP20 (compartimento de potencia) IP6X (compartimento de control) | ||
| Humedad relativa | <95%(sin condensación) | ||
| Rango de temperatura de servicio (℃) | -30~+60 (>(sala cuarta) | ||
| Max. Altitud de operación (m) | 5000(>3000) | ||
| Interfaz de comunicación | RS485/CAN/Ethernet | ||
| BMS/EMS Access (en inglés) | Soporte técnico | ||
Dimensión W*D*H (mm) | 483*680*174 de 19 pulgadas 4U 483*680*220 de 19 pulgadas 5U | 483*680*174 de 19 pulgadas 4U 483*680*220 de 19 pulgadas 5U | 584*680*174 23inch 4U 584*680*220 23inch 5U |
| Peso (kg) | 48(instalación posterior) 50(cabledelantero) | 48(instalación posterior) 50(cabledelantero) | 58(instalación posterior) 60(cabledelantero) |

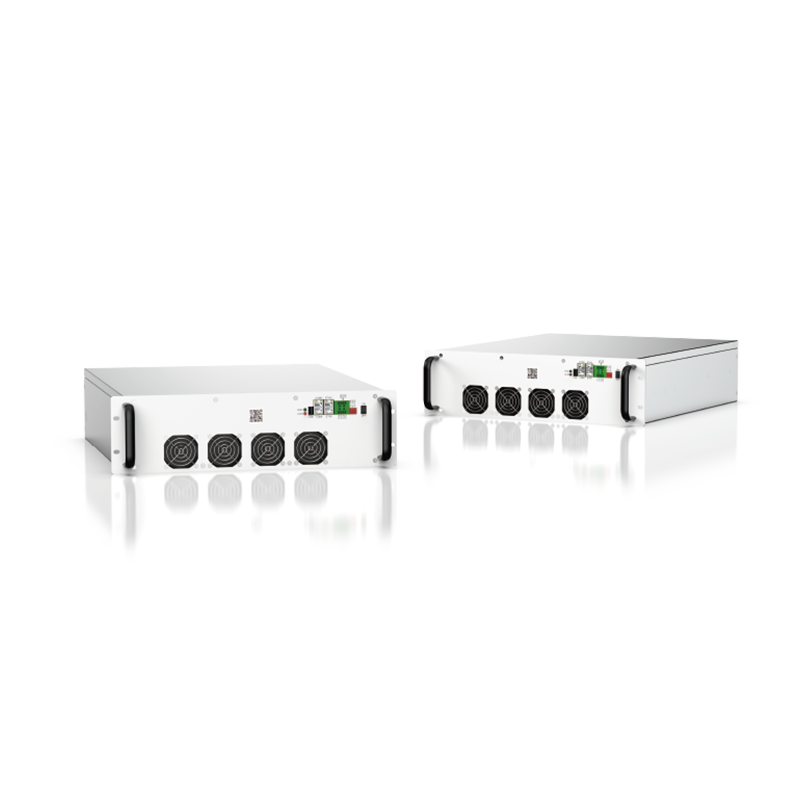

| modelo | PMA060 | PMA0100 |
| DC(batería) | ||
| Max. Potencia de corriente continua (kW) | 75 | 126 |
| Rango de tensión de corriente continua (V) | 700~950(720~900 a plena carga) | |
| Max. Corriente continua (A) | ±110 | ±180 |
| Precisión en la estabilización de tensión | ±1% | |
| Precisión de la estabilización de corriente | ±2% | |
| Ca (en la red) | ||
| Potencia nominal de corriente alterna (kW) | 62.5 | 105 |
| Max. Potencia de ca (kW) | 75 | 126 |
| Escala de tensión | 3W+PE | |
| Tensión nominal (V) | 480 | |
| Corriente alterna nominal (A) | 75 | 126 |
| Max. Corriente alterna (A) | 90 | 150 |
| THDi | ＜3% | |
| Rango de tensión admisible de red (V) | 480±15% | |
| Banda de frecuencia admisible de red (Hz) | 60/50±2.5 | |
| Rango de ajuste del factor de potencia | -1~+1 | |
| Precisión de potencia activa | 1% | |
| Precisión de la potencia de reacción | 2% | |
| sistema | ||
| Max. eficiencia | 98.5% | 98.7% |
| Tiempo de conmutación carga/descarga (ms) | ＜20 | |
| Grado de protección | IP20 | |
| Humedad relativa | <95% (sin condensación) | |
| Rango de temperatura de funcionamiento | -30~60 (más de 45℃) | |
| Max. Altitud de operación | 5.000 m(> 3.000 m) | |
| Interfaz de comunicación | RS485/CAN/Ethernet | |
| BMS/EMS Access (en inglés) | si | |
| Dimensiones (W*D*H)(mm) | 440*550*133 | |
| Peso (Kg) | 30 | 40 |
| Model | PMA0125 | PMA0135 |
| DC data | ||
| Max. DC continuous power (kW) | 137 | 148 |
| Operating DC voltage range (Vdc) | 590~950(3W+PE)/650~950(3W+N+PE) | |
| Full load DC voltage range (Vdc) | 600~900(3W+PE)/680~900(3W+N+PE) | |
| Max. DC current (A) | ±250 | ±270 |
| Max. DC continuous current (A) | ±230 | ±247 |
| Voltage stabilization accuracy | ±1% | |
| Current stabilization accuracy | ±2% (Of rated power) | |
| AC data(on-grid) | ||
| Rated AC power (kW) | 125 | 135 |
| Max. AC power (kVA) | 150 | 162 |
| Max. AC continuous power (kVA) | 137 | 148 |
| Grid type | 3W+PE or 3W+N+PE | |
| Rated AC voltage (Vac) | 400/230 | |
| Rated AC current (A) | 180 | |
| Max. AC current (A) | 216 | |
| Max. AC continuous current (A) | 198 | |
| THDi | ＜3% (Of rated power) | |
| Rated voltage/voltage range (V) | 400±15% (According to load standards) | |
| Rated frequency/frequency range (Hz) | 50±5 / 60±5 (According to load standards) | |
| Adjustable power factor range | >0.99; -1~ +1 | |
| AC data(off-grid) | ||
| Rated AC power (kW) | 125 | 135 |
| Max. AC power (kVA) | 150 | 162 |
| Max. AC continuous power (kVA) | 137 | 148 |
| Max. AC current (A) | 216 | 233 |
| Max. AC continuous current (A) | 198 | 214 |
| Rated voltage (V) | L-N:220/230/240; L-L:380/400/415 | |
| Rated frequency (Hz) | 50/60 | |
| Voltage accuracy | ±1% | |
| Frequency accuracy (Hz) | 50/60 ± 0.2% | |
| THDu | <3% (Of linear balance load) | |
| DC voltage component | <0.5%Un(Of linear balance load) | |
| Output voltage imbalance | ±1%; 120 ±1° (Of linear balance load) | |
| Load unbalance | 100% Three-phase unbalanced | |
| Overload capacity | ≤110%:Continuous; 110%~≤120%:2min; ＞120%:200ms | |
| Communication parameters | ||
| Human-computer interaction | 10.1" Touch screen / Local web/ Upper computer (Optional) | |
| Communication interface | Ethernet/RS485/CAN | |
| Communication with BMS | RS485/CAN (Optional) | |
| Communication with EMS | RS485/Ethernet (Optional) | |
| General | ||
| Max. efficiency | 98.5% | |
| Charge/discharge switching time (ms) | ＜20 | |
| Relative humidity | ＜95% (Non-condensing) | |
| Operating temperature range （℃) | -30~+60 (>45 Derating) | |
| Storage temperature range （℃) | -40~+70 | |
| Max. operating altitude (m) | 5,000 (>3,000 Derating) | |
| Noise emission (dB) | ＜70 | |
| Over voltage category | DC type II / AC type III | |
| Pollution degree | External PD3; Internal PD2 | |
| Protection degree | IP20（Power compartment） IP5X（Control compartment） | |
| Cooling | Intelligent forced air-cooling | |
| DC connector | Quick plug terminal (front maintained), hot plug (quick connector) (back maintained) | |
| AC connector | Quick plug terminal (front maintained), hot plug (quick connector) (back maintained) | |
| Installation style | Rack-mounted (Vertical/horizontal) | |
| Dimension W*D*H (mm) | 690(without mounting ears 650)*700*220 5U | |
| Weight (kg) | 75 | |

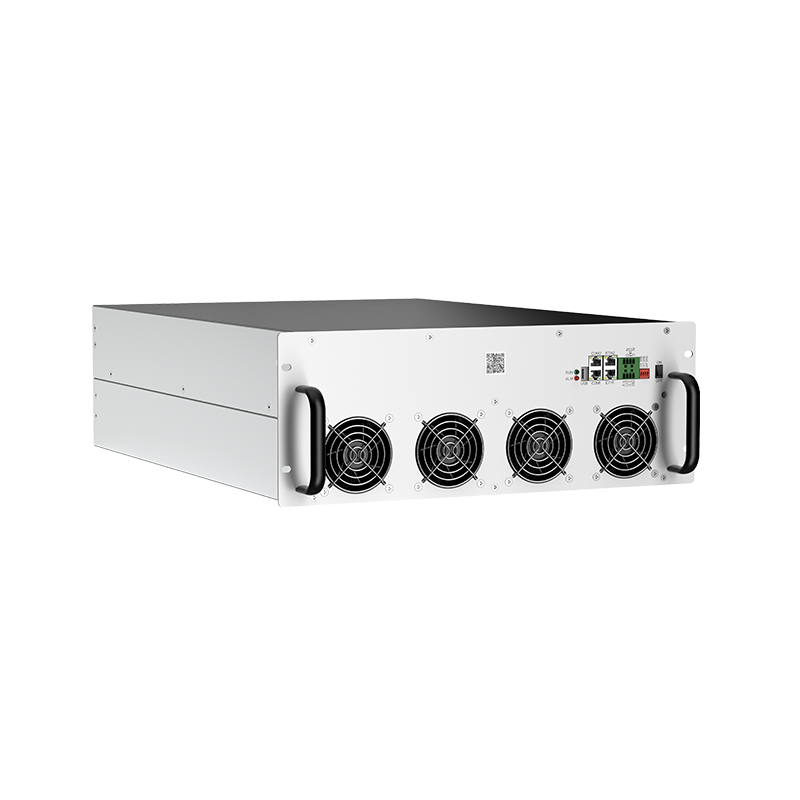

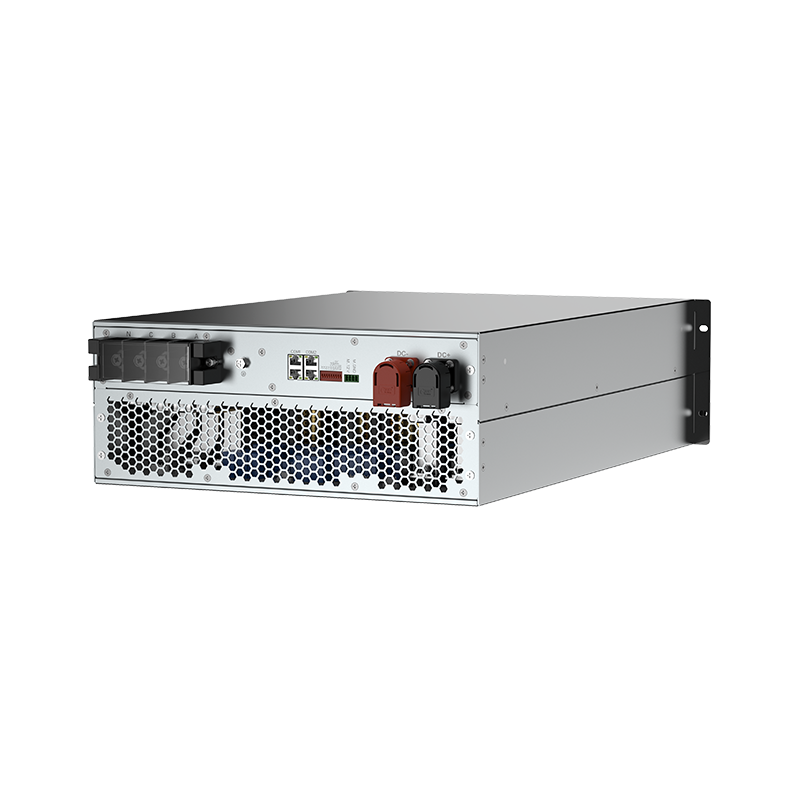

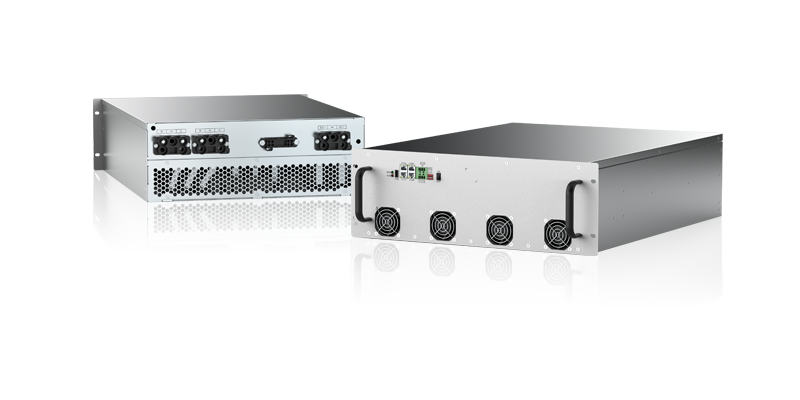

| Model | PMA0050 | PMA0060 |
| Parameters for DC side | ||
| Max. DC continuous power (kW) | 55 | 69 |
| Operating DC voltage range (V) | 590~950Vdc(3W+PE)/650~950Vdc(3W+N+PE) | |
| Full load DC voltage range (V) | 600~900Vdc(3W+PE)/680~900Vdc(3W+N+PE) | |
| Max. DC current (A) | ±100 | ±125 |
| Max.DC continuous current | ±92 | ±115 |
| Stabilized voltage precision | ±1% | |
| Stabilized current precision | ±2% (Of rated power) | |
| Parameters for AC side(on-grid) | ||
| Rated active power (kW) | 50 | |
| Max. apparent power (kVA) | ||
| Max. continuous apparent power (kVA) | ||
| Grid type | ||
| Rated AC voltage (V) | ||
| Rated AC current (A) | ||
| Max. AC current (A) | ||
| Max. AC continuous current (A) | ||
| THDi | ||
| Grid voltage range (V) | ||
| Grid frequency range (Hz) | ||
| Adjustable power factor range | ||
